SI Engine with programmable ECU

 Fuel Map, 3D, Selection of Injection Time, Load, RPM, Display of Engine Data

The PC connected to the engine shows the map for the injection time.

One red line indicates the selected speed (rpm), the other one the selected thottle position (Load).

The injection time indicated by the intersection of both lines can be modified in the other window.

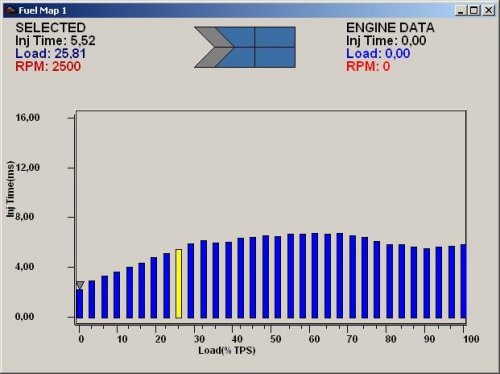

bar chart: the memorized injection time for every selectable throttle position for the actually selected speed

This bar chart shows the memorized injection time for every selectable throttle position for the actually selected speed.

The yellow bar displays the injection time for the selected throttle position. It can be modified by the vertical cursor keys thus modifying the selected injection time.

The injection time for another throttle position can be selected by the horizontal keys.

Injection times for higher or lower speed can be selected by two further keys.

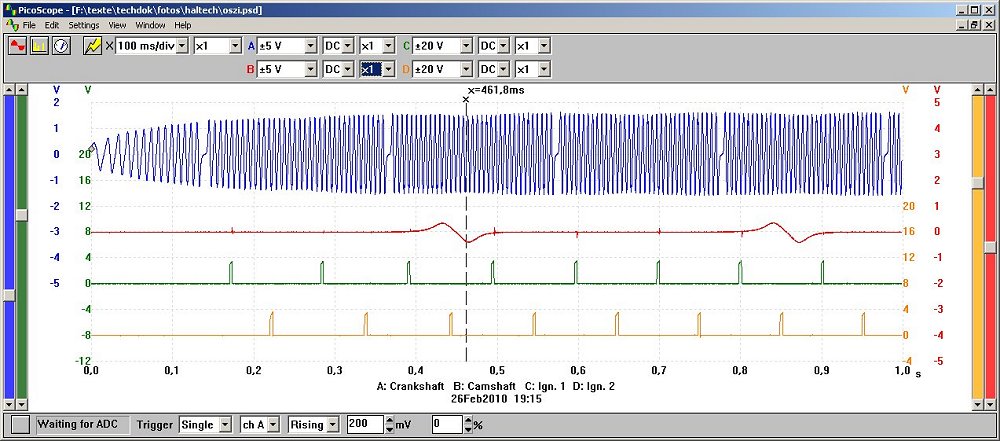

Inputs and outputs on the ECU are accessible on terminals prepared accordingly. Example: Starting the engine without injection.
